3 Pin Plug Tops: 6A vs 16A, Which Socket Each Fits and How to Wire One
A 3 pin plug is the round-pin plug with a third, larger earth pin that goes on every metal-bodied appliance in an Indian home, and it comes in two sizes that do not swap: 6A for light loads and 16A for heavy ones. Buy the wrong one and it either will not fit the socket or, worse, gets forced into one through an adaptor. This guide covers the two sizes, the pins, which socket each fits, the earth pin and how to wire a plug top, using the plug tops we make in Mumbai and their MRPs as the examples.
Key takeaways
- Two sizes: a 6A 3 pin plug for light loads such as lamps, TVs and computers, a 16A 3 pin plug for the geyser, AC, heater, iron, microwave and washing machine.
- A 16A plug fits only a 16A or combined 6A & 16A socket — never a 6A socket, including a 6A “2 in 1 five pin” socket.
- The earth pin is thicker and longer so it connects first and breaks last. Never cut or bend it.
- Wiring: live to L, neutral to N, green-and-yellow or green to E, sheath clamped under the cord grip, no bare copper.
- Our plug tops run from ₹64 * to ₹110 * MRP in 6A and 16A, made at our works in Marol, Andheri East, Mumbai.
What is a 3 pin plug?
A 3 pin plug is the plug on the end of an appliance cable that carries two current pins, live and neutral, plus a third, larger pin for earth, so that a fault current in a metal-bodied appliance has a safe path to ground instead of through the person touching it.
In Indian shops the same thing is called a 3 pin top, a plug top or, in Hindi, a “three pin top”. The word “top” matters: a plug top is sold on its own, without a cable, and is fitted onto the appliance’s flexible cord by the buyer or an electrician. You buy one when an old plug cracks or a cord has been cut short.
In India a round-pin 3 pin plug comes in two everyday sizes, 6 amp and 16 amp, and the two are not interchangeable. Below: the difference, the pins, the sockets, the earth pin and the wiring, with the plug tops we make in Mumbai as examples.
6A vs 16A 3 pin plug: the two sizes
A 6A 3 pin plug is the small one, for light loads: a table lamp, a television, a desktop computer, a pedestal fan, a mixer. A 16A 3 pin plug is the large one, for heavy heating and motor loads: typically the geyser, air conditioner, room heater, iron, microwave and washing machine.
The number is the plug’s current rating: the most current it is designed to carry continuously. Small = 6A When people search for a “small three pin plug”, this is the one they mean. Large = 16A The “power plug” is the 16 amp one.
How heavy a load each plug size is typically used for — an ordering, not a measurement
Bar length shows a rough ordering of how heavy each load is, drawn by us for illustration; it is not a reading in amps or watts. The appliance’s rating plate and manual decide which plug and socket it needs.
A plug rating is a ceiling, not a target. A light appliance on a 16A plug is fine; a heavy appliance on a 6A plug is not.
| 6A 3 pin plug | 16A 3 pin plug | |
|---|---|---|
| Built for | Light loads | Heavy heating and motor loads |
| Typical appliances | Lamp, TV, computer, table fan, mixer | Geyser, AC, heater, iron, microwave, washing machine |
| Pins | Smaller pins, closer together | Thicker pins, set further apart |
| Fits | 6A 3-pin, 6A 2 in 1 five pin, combined 6A & 16A | 16A socket, combined 6A & 16A |
| Does not fit | 16A-only socket, 2-pin socket | Any 6A socket, including 2 in 1 five pin |
| Our codes | 241, 243, 245, 247 | 242, 244, 246, 248 |
| Our MRP | ₹64 to ₹68 * | ₹105 to ₹110 * |
3 pin plug sizes: pins, spacing and how to tell them apart
You can tell the two sizes apart by eye. On the 6A plug the live and neutral pins are roughly 5 mm thick and the earth pin roughly 7 mm. On the 16A plug everything grows: the live and neutral pins are roughly 7 mm thick, the earth pin thicker still, and all three sit further apart. These round-pin shapes are the ones covered for India by the IS 1293 standard for plugs and socket-outlets.
Hold them side by side Side by side, the 16A plug is visibly bigger in every direction. Read the moulding A good plug top also carries its rating on the body, so you do not have to guess.
Filed pins Never file, bend or pack pins to force a fit. The mismatch is deliberate: thicker pins carry more current with less heating.
If a 3 pin plug will not go into the socket beside the appliance, the socket is doing its job. The answer is the right socket, not a modified plug.
6A for light electronics and lamps; 16A for anything that heats or drives a big motor.
The longer, thicker third pin is the fault path. Never cut, bend or break it.
Live to L, neutral to N, earth to E, sheath under the cord grip, every screw tight.
A plug that will not fit is the socket protecting you. Get a 16A point installed.
Which socket does a 3 pin plug fit?
A 6A 3 pin plug fits a 6A 3-pin socket, a 6A “2 in 1 five pin” socket or a combined 6A and 16A universal socket, while a 16A 3 pin plug fits only a 16A socket or a combined 6A and 16A universal socket, and never a 6A socket of any kind.
6A plug goes into a 6A 3-pin socket such as our KEMPS K192 or VIZA Black V1269, into a 2 in 1 five pin socket, which takes 6A 2-pin and 3-pin plugs, or into a combined socket. 16A plug goes into a 16A socket such as VIZA V263 or V264, or into a combined socket. Not a five pin Our “2 in 1 five pin” sockets are 6A; a 16A plug does not belong in them.
Which of our socket types takes each 3 pin plug — categories, not measurements
Bar length shows how many of the two 3 pin plug sizes each socket type accepts, as an ordering drawn by us; it is not a measured value. A 2-pin socket takes neither 3 pin plug.
A combined socket takes both plugs, so it should only be fitted where the circuit behind it is wired and protected for 16A. Our 6A vs 16A socket guide explains why, appliance by appliance.
The earth pin: why the third pin is bigger and longer
The third pin is the earth. On a round-pin Indian plug it is usually both thicker and longer than the other two, and each of those is on purpose. Longer Because it is longer, the earth connects first when you push the plug in and disconnects last when you pull it out, so the appliance body is earthed whenever the live pin is touching. Thicker Because it is thicker, it cannot be pushed into a live or neutral hole.
Shutters In many shuttered sockets the earth pin is also what opens the shutter over the live and neutral holes. Metal bodies Metal-bodied appliances ship with 3 pin plugs because a fault can make the body live.
Earth pin removed Breaking off an earth pin to fit a 2-pin socket leaves a metal appliance with no fault path at all. Earth behind the wall Equally, a perfect plug is only as earthed as the socket wiring it plugs into.
Never cut, bend or break the earth pin of a 3 pin plug. If the only socket nearby is 2-pin, have a 3-pin point installed.
Whether a socket is actually connected to earth cannot be seen from the plate. An electrician tests it with an instrument.
Which appliances need a 16 amp 3 pin plug?
A 16 amp 3 pin plug is typically needed for appliances that heat water or air or drive a large motor: the geyser, split or window air conditioner, room heater, iron, microwave oven or OTG and washing machine, with the refrigerator commonly given a 16A point too, and each of these should land on a 16A socket.
16A, typically Geyser, AC, room heater, iron, microwave, washing machine. 6A, typically Lamp, TV, set-top box, router, computer, table fan, mixer. Check the manual Where an appliance manual names a socket rating or a dedicated circuit, the manual wins over any list, including ours.
Plug ≠ circuit Fitting a 16A plug top and a 16A socket does not make a point fit for a geyser if the wire behind it was laid for lamps. A licensed electrician sizes that wire and picks the MCB; our guide to which MCB for home explains the ratings they will be choosing between.
Do not replace a 16A plug with a 6A plug top to make a heavy appliance fit a light-duty socket. It moves the weak point, it does not remove it.
How do you wire a 3 pin plug top?
To wire a 3 pin plug top, open the cover, clamp the cable sheath under the cord grip, then connect the live wire to the terminal marked L, the neutral to N and the green-and-yellow or green earth wire to E, with no bare copper showing and every screw tight, before closing the cover.
Brown / red = live Blue / black = neutral Green-yellow / green = earth Newer flexible cords typically use brown, blue and green-and-yellow; older Indian wiring often used red, black and green. Most plug tops mark their terminals L, N and E, so follow the marks rather than a diagram of a different plug.
Earth slightly longer Leave the earth conductor a little longer, so it is the last to pull free if the cable is yanked. Cord grip on the sheath The grip should clamp the outer sheath, not the loose inner wires. Stray strands Twist the strands, trim any that escape and never leave copper outside a terminal.
Switch off and unplug before you open any plug top. If you are unsure which wire is which, stop and ask an electrician: a live-earth swap can make an appliance body live.
A plug top that is clamped, tight and correctly wired should not move when you tug the cable gently. If it does, open it and redo the cord grip.
Our 3 pin plug tops and their MRP

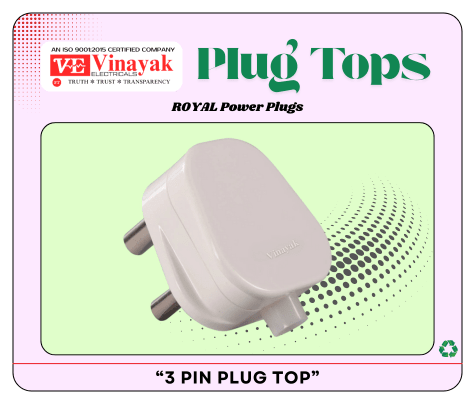

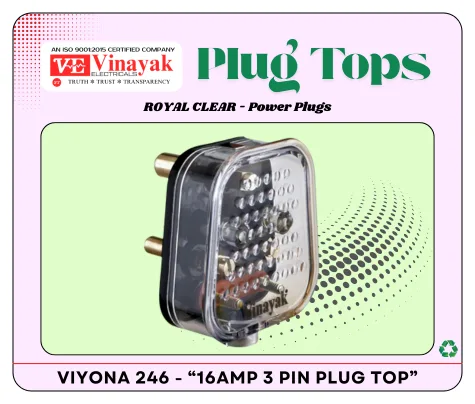

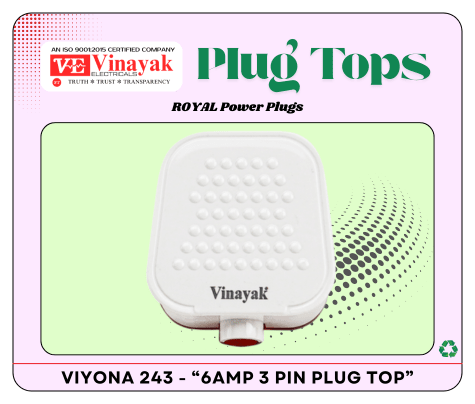

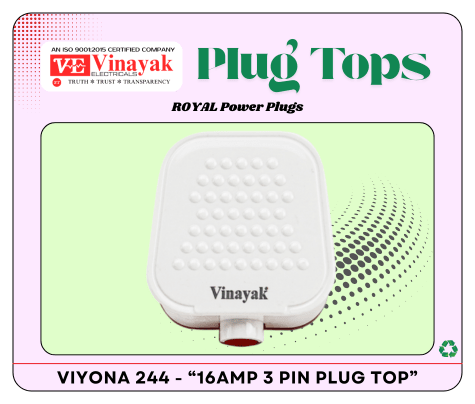

We make round-pin 3 pin plug tops in three designs in our VIYONA accessories range, each in 6A and 16A, packed 20 to a box. Royal 243 / 244 The Royal 3 pin plug top, 6A at ₹68 * and 16A at ₹110 *. Royal Clear 245 / 246 A clear version of the Royal at the same MRP; a clear body is typically chosen so the terminals can be checked by eye. Deluxe 241 / 242 6A at ₹64 * and 16A at ₹105 *. Decent 247 / 248 6A at ₹64 * and 16A at ₹110 *.
MRP of our 3 pin plug tops, by rating and design
From the MRP column of the Vinayak Electricals catalogue (* MRP incl. of all taxes). Bar length is proportional to MRP against the highest, ₹110, rounded to the nearest 5%, which is why ₹64 and ₹68 draw the same length.
MRP, not counter price These are maximum retail prices; a dealer’s price may be lower. Cheap next to the appliance Replacing a cracked top is cheap next to the appliance it protects.
Order by code. “244” means a 16A Royal plug top to any of our dealers, with no room for a 6A top to arrive by mistake.
Sockets we make that take a 16A 3 pin plug
A 16A plug needs a socket built for it, and we make four 16A-only socket codes and six combined 6A and 16A codes. 16A only VIZA V263 with a porcelain base and V264 in PC, VIZA Black V1266 in porcelain and V1267, the VIZA Black 16A twin socket with a PC body. Combined KEMPS K193 and K194, VIZA V269 and V270, and the VIYONA 6 and 16 amp universal sockets 153 and 154.
MRP of our sockets that accept a 16A 3 pin plug
From the Vinayak Electricals catalogue (* MRP incl. of all taxes). Where a row holds two codes, the bar is proportional to the higher MRP against ₹245, rounded to the nearest 5%. KEMPS pairs are white / grey versions of the same socket.
Shutter The KEMPS and VIYONA 153 combined sockets carry a shutter. 2M In the KEMPS and VIZA modular ranges these are two-module units. Every rating we make is listed on our switch and socket ratings page.
Plan the socket before the plug. A 16A plug top bought for a room with only 6A points will end up on an adaptor.
Multi plugs, conversion plugs and 2 pin tops
Alongside the 3 pin tops we make multi plugs and conversion plugs, sold under our 6 and 16 amp 3 in 1 / 4 in 1 multi plug range. 251 6A multi plug, ₹68 *. 252 6A Royal multi plug, ₹81 *. 256 6A Descent multi plug, ₹80 *. 254 6 and 16 amp universal conversion plug, ₹185 *. 257 6 and 16 amp conversion plug, ₹56 *. More on these is on our 3 in 1 multi plug page.
261 / 263 For double-insulated devices we make the Royal and Decent 2 pin tops at ₹21 * each, and 2 pin male-female connectors at ₹42 *.
Light loads A multi plug is for several small loads that together stay well inside the socket’s rating. Adaptor into 6A No conversion plug raises the rating of the socket it sits in: a 16A appliance run through one into a 6A socket still pushes its full load through 6A contacts and 6A wiring.
Never use a multi plug or conversion plug to run a geyser, heater, iron, AC or microwave from a 6A socket. That load needs its own 16A point.
Choosing a good plug top, and when to replace one
A plug top carries the whole load of the appliance, so check it at the counter. Rating on the body The 6A or 16A rating should be moulded on, not only on the box. Maker’s name Buy one that names its manufacturer. Firm pins Pins should not wobble in the body. Real cord grip A proper clamp, not a gap the cable slides through.
Replace now A plug top that is cracked, melted, brown around a pin or warm after use has already been overheating. Loose in the socket If a plug falls out under its own cable’s weight, the socket contacts may be worn too; poor grip means a small contact area, and that is where heat builds. Our guide to a switch getting hot or socket sparking covers what that heat is telling you.
Replace the plug top and the socket together if both show heat marks. A new plug in a scorched socket will not last.
For any electrical product, the markings are checkable. Our guide on how to spot a fake ISI mark shows what to look for.
3 pin plug manufacturers in Mumbai: who we are
Vinayak Electricals has manufactured electrical accessories in Mumbai since 1995. Since 1995 Marol, Andheri East Our plug tops, sockets and switches are made at our own works in Marol, Andheri East, the only place we manufacture. 100% in-house Nothing is outsourced. ISO 9001:2015 The company is certified to ISO 9001:2015, and our switches are made to IS 3854 under ISI licence CM/L-7567794.
2000+ products Over 2000 products across KEMPS, VIZA and VIYONA mean a plug top can be bought with the socket, switch and plate it goes into. Every product passes through the same five steps: raw material selection, in-house manufacturing, assembly with checkpoints, functional and safety testing, and final inspection and packaging. Test reports Buyers and dealers can ask for test reports before an order.
500+ dealers We sell through more than 500 dealers across India, by phone and to buyers who visit; we do not sell online. Browse our VIYONA accessories and the full product range, reach us through the contact page, or read how to become a dealer or distributor if you want to stock the range.
Electricians, dealers and distributors who buy our products can join VINAYAK KONNECT, our loyalty programme, to earn on every purchase and redeem against rewards.
FAQs
What is the difference between a 6A and a 16A 3 pin plug?
Will a 16A 3 pin plug fit a 2 in 1 five pin socket?
What is a थ्री पिन टॉप (three pin top)?
Which wire goes where in a 3 pin plug?
Can I use a 6A 3 pin plug in a 16A socket?
What is the price of a 3 pin plug top?
